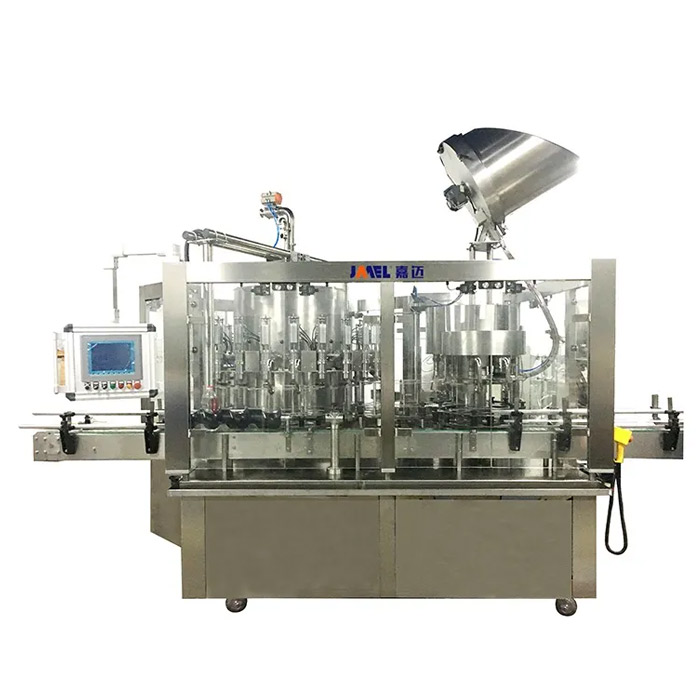

Fully Automatic Rotatory Weighing Type Filling Machine
JAMEL manufactures a range of standard liquid filling machines to suit a wide variety of liquids, bottle sizes and production outputs. Our liquid filling machines automate multi-head filling systems using either vacuum level filling or volumetric piston filling technologies. When it comes to your liquid filling needs, you may rely on JAMEL to help you to determine the best packing system for your business.
This equipment is a new type of rotatory weighing type filling machine that has been researched and developed by our company. It has the complete function of automatic weighing, filling, and cap installing. The whole machine is manufactured without contamination by plasticizer, etc., in compliance with food-class standards. And its precision is not affected by liquid viscosity and temperature. It is clean and sanitary during the whole process.
In terms of capacity, the medium one can reach 600-1300 barrels (20L), the small one over 3000-6000 barrels (5L). In addition to high performance, our company improves the appearance, making it the ideal equipment for mass production of edible oil.
Weighing feedback system: to control the whole-machine/single-nozzle flow with human-machine interaction,
Touch-screen operation: friendly interface for convenient operation;
Switching valve core: special design to increase absorption to avoid leakage and splash;
German Siemens PLC: global brand with fast calculation and stable performance;
FLINTEC weighing module: from Germany with accurate metering;
Neat appearance: the material for the whole frame is heavy and robust.
Features
Compressed air is used to control the filling valve, at consistent speed and not influenced by the resistance of sealing ring.
The flow can be finely adjusted through filling valve. The valve mouth is sealed conically to avoid splash.
The core elements of the main machine are from top brands like Siemens and Schneider, so they are easy to buy and simple to maintain.
The whole machine adopts isolation filling to avoid secondary pollution effectively. The whole frame is heavy and robust, and can be used for long without deformation.
Mechatronics technology is used to automatically control the whole machine, and it has the function of induction filling.
Lifting type cap finishing machine is in conical design to facilitate cleaning. All-steel structure can meet the requirements of food safety.
Solenoid valve from US MAC is used for its fast response, stable performance, and long service life.
Parameters
| ——- | 8/12/15 nozzles | 12nozzles | 16nozzles | 20nozzles | 24nozzles | 26nozzles |
| Productivity (barrel/h) | 600/1000/1300 | 3000 | 4000 | 4500 | 5000 | 6000above |
| Filling range (L) | 10-20 | 1.8-5 | 1.8-5 | 1.8-5 | 1.8-5 | 1.8-5 |
| Precision | ±1‰ | |||||
| Power supply (V) | 380±10% | |||||
| RemarksRemarks | The productivity of medium barrel is taken as 20L, and that of small barrel as 5L | |||||
